Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks

Jie-fu CHEN Hua CHEN Xing XU Yan-li JI Li-jiang CHEN

陈杰夫, 陈华, 徐行, 姬艳丽, 陈李江. 基于对抗生成网络的多风格化的汉字[J]. 电子科技大学学报, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
引用本文: 陈杰夫, 陈华, 徐行, 姬艳丽, 陈李江. 基于对抗生成网络的多风格化的汉字[J]. 电子科技大学学报, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
CHEN Jie-fu, CHEN Hua, XU Xing, JI Yan-li, CHEN Li-jiang. Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks[J]. Journal of University of Electronic Science and Technology of China, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
Citation: CHEN Jie-fu, CHEN Hua, XU Xing, JI Yan-li, CHEN Li-jiang. Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks[J]. Journal of University of Electronic Science and Technology of China, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003

基于对抗生成网络的多风格化的汉字

doi: 10.3969/j.issn.1001-0548.2019.05.003
基金项目:

the National Natural Science Foundation of China under Grant 61602089

the National Natural Science Foundation of China under Grant 61673088

详细信息
    作者简介:

    陈杰夫(1993-), 男, 主要从事多媒体内容分析、计算机视觉和社交媒体分析等方面的研究.E-mail:790416231@qq.com

  • 中图分类号: TN97

Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks

Funds:

the National Natural Science Foundation of China under Grant 61602089

the National Natural Science Foundation of China under Grant 61673088

More Information
    Author Bio:

    CHEN Jie-fu was born in 1993, and his research interests include multimedia content analysis, computer vision and social media analysis

  • 摘要: 随着生成对抗网络(GAN)的发展,中文字体转换领域的研究越来越多,研究者能够生成高质量的汉字图像。这些字体转换模型可以使用GAN将源字体转换为目标字体。然而,目前的方法有以下局限:1)生成的图像模糊;2)模型一次只能学习和生成一种目标字体。针对这些问题,该文开发了一种全新的模式来执行中文字体转换。首先,将字体信息附加到图像上,告诉生成器需要转换的字体;然后,通过卷积网络提取和学习特征映射,并使用转置卷积网络生成照片真实图像。使用真实图像作为监控信息,以确保生成的字符和字体与它们自身一致。这个模型只需要训练一次,就能够将一种字体转换为多种字体并生成新的字体。对7个中文字体数据集的大量实验表明,该方法在中文字体转换中优于其他几种方法。
  • Figure  1.  Our model compare with other models

    Figure  2.  Real images and our generating images

    Figure  3.  Our models results compare with other models results

    Figure  4.  Comparison of the results of three models

  • [1] SUN Dan-yang, REN Tong-zheng, LI Chong-xuan, et al. Learning to write stylized Chinese characters by reading a handful of examples[C]//Proceedings of the Twenty-Seventh International Joint Conference on Artificial Intelligence. Stockholm, Sweden: [s.n]. 2018: 920-927.
    [2] ISOLA P, ZHU J Y, ZHOU T, et al. Image-to-image translation with conditional adversarial networks[C]//IEEE Conference on Computer Vision & Pattern Recognition. Honolulu, HI, USA: IEEE, 2017: 5967-5976
    [3] CHO Yun-jey I, CHOI Min-je, KIM Mun-young, et al. Stargan: Unified generative adversarial networks for multi-domain image-to-image translation[C]//IEEE Conference on Computer Vision and Pattern Recognition.[S.l.]: IEEE, 2018: 8789-8797.
    [4] XU Song-hua, JIN Tao, JIANG Hao, et al. Automatic generation of personal Chinese handwriting by capturing the characteristics of personal handwriting[C]//Proceedings of the Twenty-First Conference on Innovative Applications of Artificial Intelligence. Pasadena, California, USA: [s.n.], 2009.
    [5] XU Song-hua, JIANG Hao, JIN Tao, et al. Automatic generation of Chinese calligraphic writings with style imitation[J]. IEEE Intelligent Systems, 2009, 4(2):44-53. http://cn.bing.com/academic/profile?id=b0616b77bc72a90fcb74ca578cca1ac2&encoded=0&v=paper_preview&mkt=zh-cn
    [6] MIRZA M, OSINDERO S. Conditional generative adversarial nets[EB/OL].[2014-11-06]. https://arxiv.org/abs/1411.1784.
    [7] SUN Han-fei, LUO Yi-ming, LU Zhang. Unsupervised Typography Transfer[EB/OL].[2018-02-07]. https://arxiv.org/abs/1802.02595.
    [8] CHANG Jie, GU Yu-jun, ZHANG Ya. Chinese typography transfer[EB/OL].[2017-07-16]. https://arxiv.org/abs/1707.04904.
    [9] GOODFELLOW I J, JEAN P A, MIRZA M, et al. Generative adversarial networks[EB/OL].[2014-06-04]. https://arxiv.org/abs/1406.2661v1.
    [10] ZHU Jun-yan, PARK T, ISOLA P. Unpaired image-to-image translation using cycle-consistent adversarial networks[C]//IEEE International Conference on Computer Vision. Venice, Italy: IEEE, 2017: 2242-2251.
    [11] KIM T, CHA M, KIM H, et al. Learning to discover cross-domain relations with generative adversarial networks[C]//Proceedings of the 34th International Conference on Machine Learning. Sydney, Australia: [s.n.], 2017: 1857-1865.
    [12] TZENG E, HOFFMANM J, SAENKO K, et al. Adversarial discriminative domain adaptation[C]//2017 IEEE Conference on Computer Vision and Pattern Recognition. Honolulu, HI, USA: IEEE, 2017: 2962-2971.
    [13] HE Kai-ming, ZHANG Xiang-yu, REN Shao-qing, et al. Deep residual learning for image recognition[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas, NV, USA: IEEE, 2016: 770-778.
  • [1] 王永, 王淞立, 邓江洲.  基于生成对抗网络的评分可信推荐模型 . 电子科技大学学报, 2024, 53(3): 396-403. doi: 10.12178/1001-0548.2023116
    [2] 周丰丰, 孙燕杰, 范雨思.  基于miRNA组学的数据增强算法 . 电子科技大学学报, 2023, 52(2): 182-187. doi: 10.12178/1001-0548.2023002
    [3] GE Shucan, LI Hailong, MENG Lin, RAUF Abdur, ULLAH Safi.  Study on the Strong Radar Echoes at Polar Mesosphere Using a New Dataset Analysis Software . 电子科技大学学报, 2021, 50(6): 868-876. doi: 10.12178/1001-0548.2021115
    [4] LI Peng, HU Jiang-ping, ZHANG Yu-ping.  Design and Analysis of Distributed Optimization Algorithm for Economic Dispatch Problem of Energy-Water Hybrid Networks . 电子科技大学学报, 2020, 49(5): 652-659, 665. doi: 10.12178/1001-0548.2020238
    [5] FAN Cong-min, ZHANG Ying-jun, YUAN Xiao-jun, LI Si-xian.  Machine Learning for Heterogeneous Ultra-Dense Networks with Graphical Representations . 电子科技大学学报, 2020, 49(6): 826-836. doi: 10.12178/1001-0548.2020356
    [6] SU Shuang-ping, YANG Wen, ZHAO Zhi-yun.  Security Analysis of Opinion Dynamics in Social Networks . 电子科技大学学报, 2020, 49(6): 924-933. doi: 10.12178/1001-0548.2019234
    [7] Fang-yuan YU.  A New Alternating Iteration Recovery Algorithm for Compressed Channel Estimation with Basis Mismatch . 电子科技大学学报, 2018, 47(4): 491-496. doi: 10.3969/j.issn.1001-0548.2018.04.003
  • 加载中
图(4)
计量
  • 文章访问数:  5139
  • HTML全文浏览量:  1593
  • PDF下载量:  177
  • 被引次数: 0
出版历程
  • 收稿日期:  2019-07-01
  • 修回日期:  2019-09-08
  • 刊出日期:  2019-09-30

Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks

doi: 10.3969/j.issn.1001-0548.2019.05.003
    基金项目:

    the National Natural Science Foundation of China under Grant 61602089

    the National Natural Science Foundation of China under Grant 61673088

    作者简介:

    CHEN Jie-fu was born in 1993, and his research interests include multimedia content analysis, computer vision and social media analysis

  • 中图分类号: TN97

摘要: 随着生成对抗网络(GAN)的发展,中文字体转换领域的研究越来越多,研究者能够生成高质量的汉字图像。这些字体转换模型可以使用GAN将源字体转换为目标字体。然而,目前的方法有以下局限:1)生成的图像模糊;2)模型一次只能学习和生成一种目标字体。针对这些问题,该文开发了一种全新的模式来执行中文字体转换。首先,将字体信息附加到图像上,告诉生成器需要转换的字体;然后,通过卷积网络提取和学习特征映射,并使用转置卷积网络生成照片真实图像。使用真实图像作为监控信息,以确保生成的字符和字体与它们自身一致。这个模型只需要训练一次,就能够将一种字体转换为多种字体并生成新的字体。对7个中文字体数据集的大量实验表明,该方法在中文字体转换中优于其他几种方法。

English Abstract

陈杰夫, 陈华, 徐行, 姬艳丽, 陈李江. 基于对抗生成网络的多风格化的汉字[J]. 电子科技大学学报, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
引用本文: 陈杰夫, 陈华, 徐行, 姬艳丽, 陈李江. 基于对抗生成网络的多风格化的汉字[J]. 电子科技大学学报, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
CHEN Jie-fu, CHEN Hua, XU Xing, JI Yan-li, CHEN Li-jiang. Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks[J]. Journal of University of Electronic Science and Technology of China, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
Citation: CHEN Jie-fu, CHEN Hua, XU Xing, JI Yan-li, CHEN Li-jiang. Learning to Write Multi-Stylized Chinese Characters by Generative Adversarial Networks[J]. Journal of University of Electronic Science and Technology of China, 2019, 48(5): 674-678. doi: 10.3969/j.issn.1001-0548.2019.05.003
    • Chinese font transformation and font design have always been problematic. One problem is that, compared to English or Latin letters, the total number of Chinese characters is huge. Chinese government standard GB18030-2000, there are 27 533 unique characters[1] and the number of daily used characters is at least 3 500. Another problem is that Chinese characters have complex shapes and structures and researchers cannot simply transform them by classifying them.

      Some methods, such as zi2zi and Chinese typography transfer, implement Chinese font transformation based on Pix2Pix[2], which is an image-to-image translation. These models learn feature maps from one target font and then apply the feature maps to the source font to do the transformation. However, one limitation of doing so is that we need to train this model again if we want to transform characters to another target font, which can be very time-consuming. Another problem is that the images generated are oftentimes blurry.

      Another image-to-image translation research is StarGAN [3]. StarGAN can learn the mappings among multiple domains using only a single generator and a discriminator, training effectively from images of all domains.

      Nevertheless, this method cannot work effectively on transforming Chinese fonts because Chinese characters have different radicals, graphic components and strokes.

      To address these problems, we have developed a new GAN's method. We use only one generator and one discriminator. When given an image and a label (one-hot vector) of the font of interest to the generator, the generator will generate fonts corresponding to the given label. Then given the fake image and real image to the discriminator, the discriminator will discriminate which one is the real image and give labels to both images on the font style. If given one image and more than one labels, the generator can create a new font. We will explain the experimental content about optimization process and the loss function in detail at proposed framework.

      In short, our main contributions are as follows.

      1) Propose a novel Chinese font transform method and a new font creation method, the former can transform from one font to multiple fonts while the latter can combine multiple fonts to generate a new font.

      2) Improve the GAN's generator, let it learn the specified multiple fonts information and specify the font to be generated.

      3) Produce qualitative and quantitative Chinese characters images, compared with other methods.

    • Chinese Fonts Transformation. Some Chinese font transformation methods[4-5] view Chinese characters as the combination of radicals and strokes. zi2zi is the first deep model. It views Chinese characters as images, uses CGAN[6] to transfer typography style[7-8], and can successfully transform fonts of Chinese characters. Style-Aware Auto-Encoder (SA-VAE) can capture different graphic components of Chinese characters by disentangling the latent features into content-related and style-related components. Chinese typography transfer is an end-to-end model which does not rely on the graphical components of Chinese characters or their stroke orders, and this model treats each single Chinese character as an inseparable image.

      StarGAN. StarGAN is used for handling face image styles conversion. It can take in training data of multiple domains, and learn the mappings among all available domains using only one single generator[3]. This generator can combine learned feature mappings to generate new images.

      Generative Adversarial Networks. Generative adversarial network (GAN)[9] has shown its superior performance in computer vision and image translation. A typical GAN model consists of two modules: a generator and a discriminator. The generator learns from the real samples to generate fake samples to "fool" the discriminator, and the discriminator tries to distinguish the real samples from the fake ones.

      Image-to-Image Translation. In recent years with development of GAN, image-to-image translation has achieved great success in the field of image migration. For instance, Cycle-GAN[10] and DiscoGAN[11] preserve key attributes between the input and the translated images by utilizing a cycle consistency loss.

      Motivated by zi2zi and StarGAN, we developed a new method to generate different fonts of Chinese characters. Our approach is to use different font datasets and corresponding labels to train the generator. In this way, the generator can successfully generate fonts that we specify.

    • In this section, we will explain how our experimental framework works. The comparison with other methods is shown in Fig. 1.

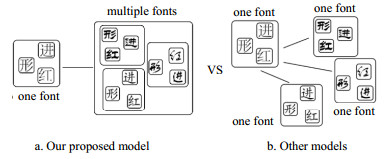

      Figure 1.  Our model compare with other models

      Let $t$ denote the ground truth image, $x$ denote the input image and $y$ denote the fake image and $c$ denote the target font label. Let $G$ be the generator and $G(x, c) \to y$ means combining x and c to feed into G to generate a fake image $y$. Suppose the discriminator is $D$ and $D({\mathit{\boldsymbol{x}}}) \to \{ {D_{{\rm{dis}}}}({\mathit{\boldsymbol{x}}}), {D_{{\rm{cls}}}}({\mathit{\boldsymbol{x}}})\} $ means giving an image ${\mathit{\boldsymbol{x}}}$ into the discriminator. ${D_{{\rm{dis}}}}$ means the result that D produces on whether the image is real. ${D_{{\rm{cls}}}}$ is the probability distribution of the target font labels that $D$ produces.

      Framework steps. In our model, we use x with one style and ${\mathit{\boldsymbol{c}}}$ as input label (one-hot vector). Then, we merge ${\mathit{\boldsymbol{x}}}$ and ${\mathit{\boldsymbol{c}}}$ into a matrix. Using the matrix feeds G and generates fake images. Finally, D discriminates the images true or false, and each image is given a font label probability.

      In order to get good experimental results, we use the adversarial loss (see formula (1) and (2)) to ensure we can produce high-quality images. The semantic consistent loss (see formula (7)) is used to keep the contents of input images and output images consistent. The font classification loss (see formula (3) and (4)) helps the model to generate and transform the fonts correctly.

      Adversarial loss. Below is the basic adversarial loss function to ensure that the image generated by the generator can "fool" the discriminator:

      $$L_{{\rm{adv}}}^{\rm{d}} = {E_{\mathit{\boldsymbol{t}}}}[\log {D_{{\rm{dis}}}}({\mathit{\boldsymbol{t}}})] + {E_{{\mathit{\boldsymbol{x, c}}}}}[\log (1 - {D_{{\rm{dis}}}}(G({\mathit{\boldsymbol{x, c}}})))]$$ (1)

      Here D tries to distinguish real images from photo-realistic images which are generated by G. We use $\mathit{\boldsymbol{t}}$ as the supervision to make $D$ to have distinguishing ability to the maximum extent.

      This loss function is to assist $G$ making photo-realistic images to fool the discriminator:

      $$L_{{\rm{adv}}}^{\rm{g}} = {E_{{\mathit{\boldsymbol{x, c}}}}}[\log (1 - {D_{{\rm{dis}}}}(G({\mathit{\boldsymbol{x, c}}})))]$$ (2)

      Here G tries to minimize this objective.

      Fonts Classification Loss. We give the ground truth images $\mathit{\boldsymbol{t}}$ and ground truth label $\mathit{\boldsymbol{c'}}$ as the supervision to let $D$ learn to classify the fonts by minimizing objective below. ${D_{{\rm{cls}}}}({\mathit{\boldsymbol{c'}}}|{\mathit{\boldsymbol{t}}})$ is a probability distribution on target font's labels computed by D. The loss defines as

      $$L_{{\rm{cls}}}^{\rm{d}} = {E_{{\mathit{\boldsymbol{t, c''}}}}}[ - \log {D_{{\rm{cls}}}}({\mathit{\boldsymbol{c'|t}}})]$$ (3)

      The loss function for font classification of fake images is defined as

      $$L_{{\rm{cls}}}^g = {E_{{\mathit{\boldsymbol{x, c}}}}}[ - \log {D_{{\rm{cls}}}}({\mathit{\boldsymbol{c}}}|G({\mathit{\boldsymbol{x, c}}}))]$$ (4)

      Here $G$ tries to minimize this objective to generate fake images which will be classified as target labels.

      Gradient penalty loss. We use gradient penalty[14] to get faster convergence and produce higher-quality photorealistic samples. ${\nabla _{{\mathit{\boldsymbol{x'}}}}}$ denotes gradient. $\alpha $ is a hyperparameter. The loss is defined as

      $$x' = \alpha * t + (1 - \alpha ) * x$$ (5)
      $$ {\rm{G}}{{\rm{P}}_{{\mathit{\boldsymbol{x, t}}}}} = {\lambda _{{\rm{gp}}}}{(||{\nabla _{{\mathit{\boldsymbol{x'}}}}}{D_{{\rm{dis}}}}({\mathit{\boldsymbol{x'}}})|{|_2} - 1)^2} $$ (6)

      Semantic consistent loss. In our model, we want generated Chinese characters to be the same as the given ones, so we use the L1 loss function. The semantic consistent loss is defined as

      $$ {L_{{\rm{feat}}}} = {E_{{\mathit{\boldsymbol{x, c}}}}}[||{\mathit{\boldsymbol{t}}} - G({\mathit{\boldsymbol{x, c}}})|{|_1}] $$ (7)

      and minimizing this objective can make G keeping the content consistent.

      Final optimization objective function. Combining all the loss functions, we train the final optimization objective function as

      $$ \mathop {\min }\limits_G \mathop {\max }\limits_D {L_{DG}} = {L_D} + {L_G} $$ (8)

      and

      $$ {L_D} = {\lambda _{{\rm{adv}}}}L_{{\rm{adv}}}^{\rm{d}} + {\lambda _{{\rm{cls}}}}(L_{{\rm{cls}}}^{\rm{d}} + G{P_{{\mathit{\boldsymbol{x, t}}}}}) $$ (9)
      $$ {L_G} = {\lambda _{{\rm{adv}}}}L_{{\rm{adv}}}^{\rm{g}} + {\lambda _{{\rm{cls}}}}L_{{\rm{cls}}}^{\rm{g}} + {\lambda _{{\rm{feat}}}}{L_{{\rm{feat}}}} $$ (10)

      Where ${\lambda _{{\rm{adv}}}}$, ${\lambda _{{\rm{feat}}}}$ and ${\lambda _{{\rm{cls}}}}$ are weights that apply to losses to have a better trade-off in semantics, classification and adaptation.

      Algorithm. The algorithm of the proposed method is as follows.

      Input: Source image ${\mathit{\boldsymbol{x}}}$ and target label ${\mathit{\boldsymbol{c}}}$; Target image ${\mathit{\boldsymbol{t}}}$ and target label ${\mathit{\boldsymbol{c}}}$

      randomly initialized a generator $G$ and a discriminator $D$

      repeat

          for number of training epochs do

              for number of batch-size do

                  //for generator

                  ${\theta _G} \leftarrow {\theta _G} - \mu \frac{{\partial {L_{DG}}}}{{\partial {\theta _G}}}$, ${L_{DG}}$ as Eq.7

                  //for discriminator

                  ${\theta _{{D_{{\rm{dis}}}}}} \leftarrow {\theta _{{D_{{\rm{dis}}}}}} + \mu \frac{{\partial L_{{\rm{adv}}}^{\rm{d}}}}{{\partial {\theta _{{D_{{\rm{dis}}}}}}}}$, $L_{{\rm{adv}}}^{\rm{d}}$ as Eq.1

                  ${\theta _{{D_{{\rm{cls}}}}}} \leftarrow {\theta _{{D_{{\rm{cls}}}}}} + \mu \frac{{\partial L_{{\rm{cls}}}^{\rm{d}}}}{{\partial {\theta _{{D_{{\rm{dis}}}}}}}}$, $L_{{\rm{cls}}}^{\rm{d}}$ as Eq.3

                  ${\theta _D} \leftarrow {\theta _{{D_{{\rm{dis}}}}}} + {\theta _{{D_{{\rm{cls}}}}}}$

              end for

          end for

      Until convergence

      $$\begin{gathered} {\hat \theta _D} \leftarrow {\theta _D} \\ {\hat \theta _G} \leftarrow {\theta _G} \\ \end{gathered} $$

      Output: the optimized $G$ and $D$ by ${\hat \theta _D}, {\hat \theta _G}$

    • For comparing with zi2zi and Chinese typography transfer, the font2img script from zi2zi was used to generate Chinese font datasets. The seven Chinese font datasets include: Songti style, Heiti style, Kaiti style, Lishu style, Xinwei style, Shuti style, and Xingkai style. 3 498 Chinese characters were generated for each dataset, generating total of 24 486 Chinese character images. The image size of each character is set to 64×64×3. A number to each font is assigned as the label, i.e., 0 to Songti style, 1 to Heiti style, 2 to Kaiti style, 3 to Lishu style, 4 to Xinwei style, 5 to Shuti style, and 6 to Xingkai style. After that we converted each label to one-hot label.

      To let the generator know the font we specified, input images and labels is attached together. As a result, the input size of images is changed to 64×64×(3+7) while the output size remains as 64×64×3.

    • Inspired from StarGAN and ADDA[12], our model has one generator and one discriminator, which has the capabilities of discrimination and classification. The generator network is composed of three convolutional blocks, six residual blocks[13], and three transposed convolutional blocks. The instance normalization is used for each convolutional layer and a rectified linear unit (Relu) activation function is followed. The discriminator network is composed of six convolutional blocks and two fully convolutional networks. Each convolutional block contains a convolutional layer and a Leaky-Relu activation function. One of the fully convolutional networks is used to distinguish real and fake images, and the other ones are used to classify the fonts.

    • Choosing one font as the source font and the rest six fonts as the targets, we produced high-quality images with fonts specified. The real images and photo-realistic images generated by using Songti Style are shown in Fig. 2. From the figure we can see that the produced images have clear graphical structures and strokes. It can be seen the photo-realistic image in last line generated by combing Xingkai and Xinwei Style is very successful.

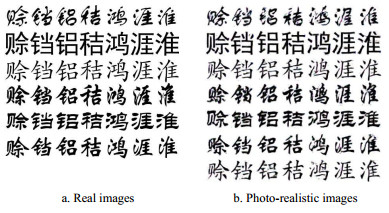

      Figure 2.  Real images and our generating images

      Comparing with other models which can only produce one font, our model can successfully not only generate six target fonts by using one source font, but also create one new font by combining any fonts, and all fonts generated have clear images. The comparing results are shown in Fig. 3 and Fig. 4.

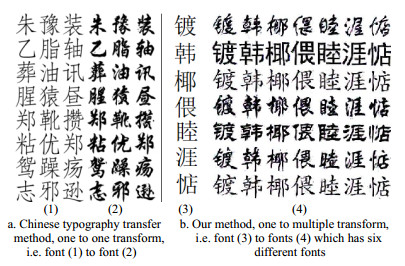

      Figure 3.  Our models results compare with other models results

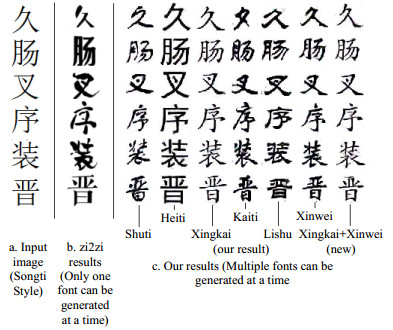

      Figure 4.  Comparison of the results of three models

      In theory, the ability of combining fonts makes it possible for our model to generate 63 new fonts.

    • In this paper, we proposed a new model to do one-to-many Chinese fonts transformation and to produce new fonts by combining existing fonts. Comparing with zi2zi and Chinese typography transfer, our model can produce higher-quality images and is reusable for different fonts. This reusable feature saves a lot of time compared to modifying and training the model again. Besides, the reuse of the same model is a major focus of transfer learning for deep learning.
